Precision Mold Parts Processing for High-Quality Tooling
In the modern manufacturing industry, molds are the core foundation of mass production for plastic, metal, and die-cast products. The precision, durability, and stability of finished products largely depend on the quality of mold parts processing. Even tiny errors in mold components can lead to defective products, increased production costs, and delayed delivery cycles.
Today, JAC-TEC will dive into the core processes, key standards, and essential tips for professional mold parts manufacturing, Jacky Technology (Dongguan)CO。，LTD sharing how high-precision processing boosts mold performance and production efficiency.
1. Core Processing Procedures for Mold Parts
Mold part fabrication is a systematic and rigorous process that integrates multiple precision machining technologies. Each step strictly follows industrial tolerance standards to ensure perfect mold assembly and operation.
● Material Selection & Pre-processing
High-quality mold steel (such as P20, H13, S136, SKD11，ASP23，SKD61，NAK80.。。。。) is selected according to product usage scenarios, wear resistance, and temperature resistance requirements. Raw materials undergo cutting, rough grinding, and stress relief annealing to eliminate internal stress, preventing mold deformation and cracking during long-term use.
● Rough Machining
CNC milling machines are used for rough cutting of mold cavities, cores, and guide parts to remove excess materials quickly. This step lays a foundation for finish machining while improving overall processing efficiency, with reserved machining allowance for subsequent precision calibration.
● Finish Precision Machining

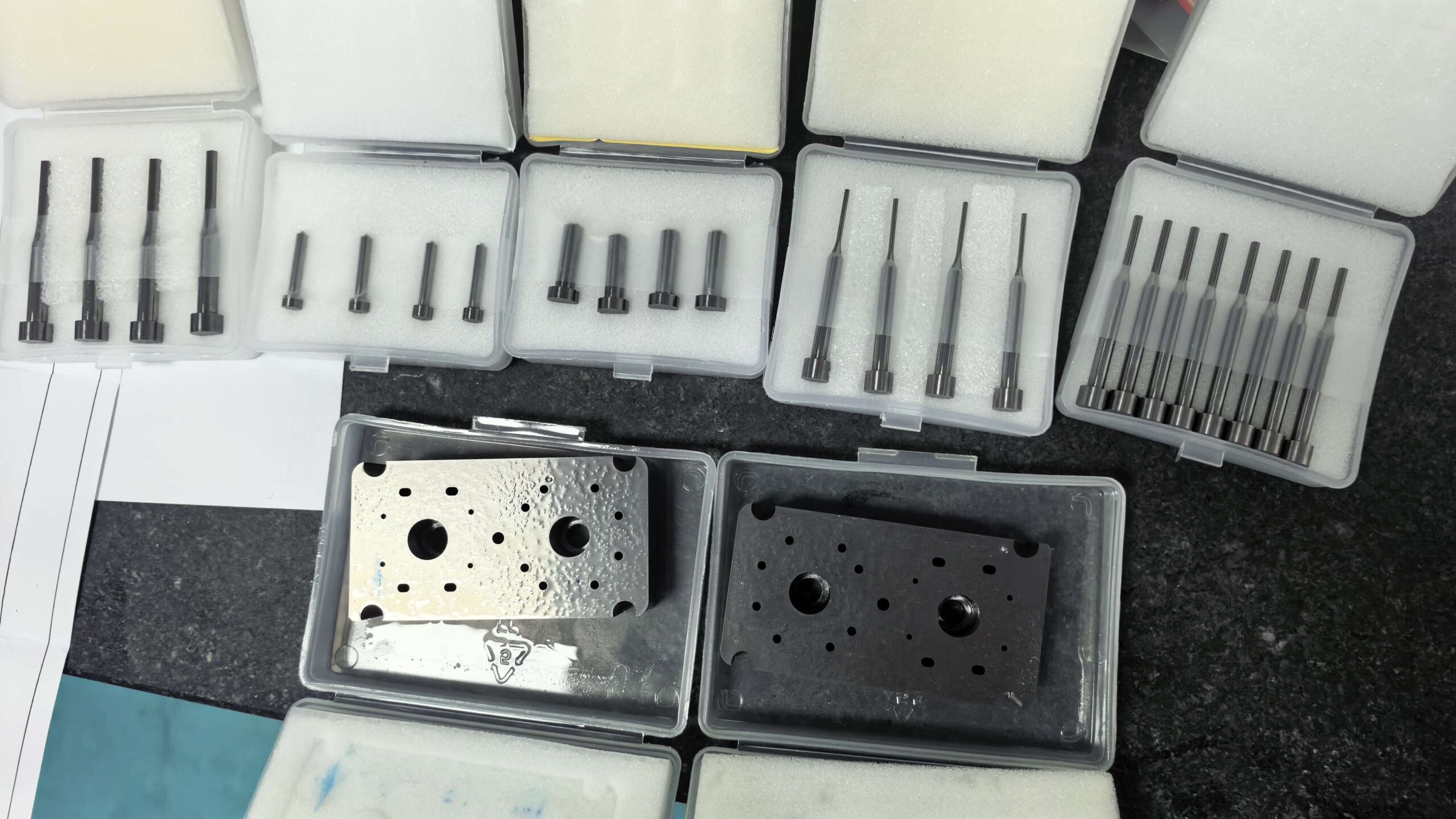

This is the most critical stage of mold parts processing. Advanced equipment including high-precision CNC machines, wire EDM (Electrical Discharge Machining), and grinding machines are adopted to process mold cavities, inserts, pins, and guide components. The machining tolerance can be controlled within ±0.005mm, meeting the precision requirements of automotive, electronic, medical, and daily commodity molds.
Whether it’s complex precision electronic molds, high-demand automotive molds, or daily-use plastic molds, standardized and refined mold parts processing is always the prerequisite for stable mass production.
Mold parts processing is a craft of precision and persistence. Every cutting, grinding, and polishing step determines the final performance of the mold. With the continuous upgrading of manufacturing industry, higher requirements are put forward for mold precision and service life. Adhering to refined processing and strict quality inspection is the key to creating high-quality mold tooling.
Have any mold processing or customization needs? Feel free to leave a comment and discuss with us!
